3D Laser Cutting Machines
TRUMPF 3D laser cutting machines represent the peak of 5-axis fabrication technology. Designed to process three-dimensional components, profiles, and tubes, these systems eliminate the need for complex mechanical milling or manual trimming of deep-drawn and hot-formed parts. By integrating high-powered beam sources with precision beam guidance, TRUMPF TruLaser Cells provide a single-platform solution for cutting, welding, and additive manufacturing.
Maintecx partners with Midwest and South-based fabricators to configure 3D laser systems that meet the stringent tolerances of the aerospace, automotive, and medical industries.
Explore Our TRUMPF 3D Laser Cutting Machines
The TruLaser Cell 3000 is a compact, high-precision 5-axis machine designed for small- to medium-sized components. It’s uniquely versatile, capable of 2D and 3D cutting and welding, as well as laser metal deposition (LMD).
The TruLaser Cell 5030 offers an economical introduction to 2D and 3D laser processing. Equipped with energy-efficient TruDisk solid-state lasers and flying optics, this machine delivers high-quality results with a much smaller footprint than traditional hybrid systems.

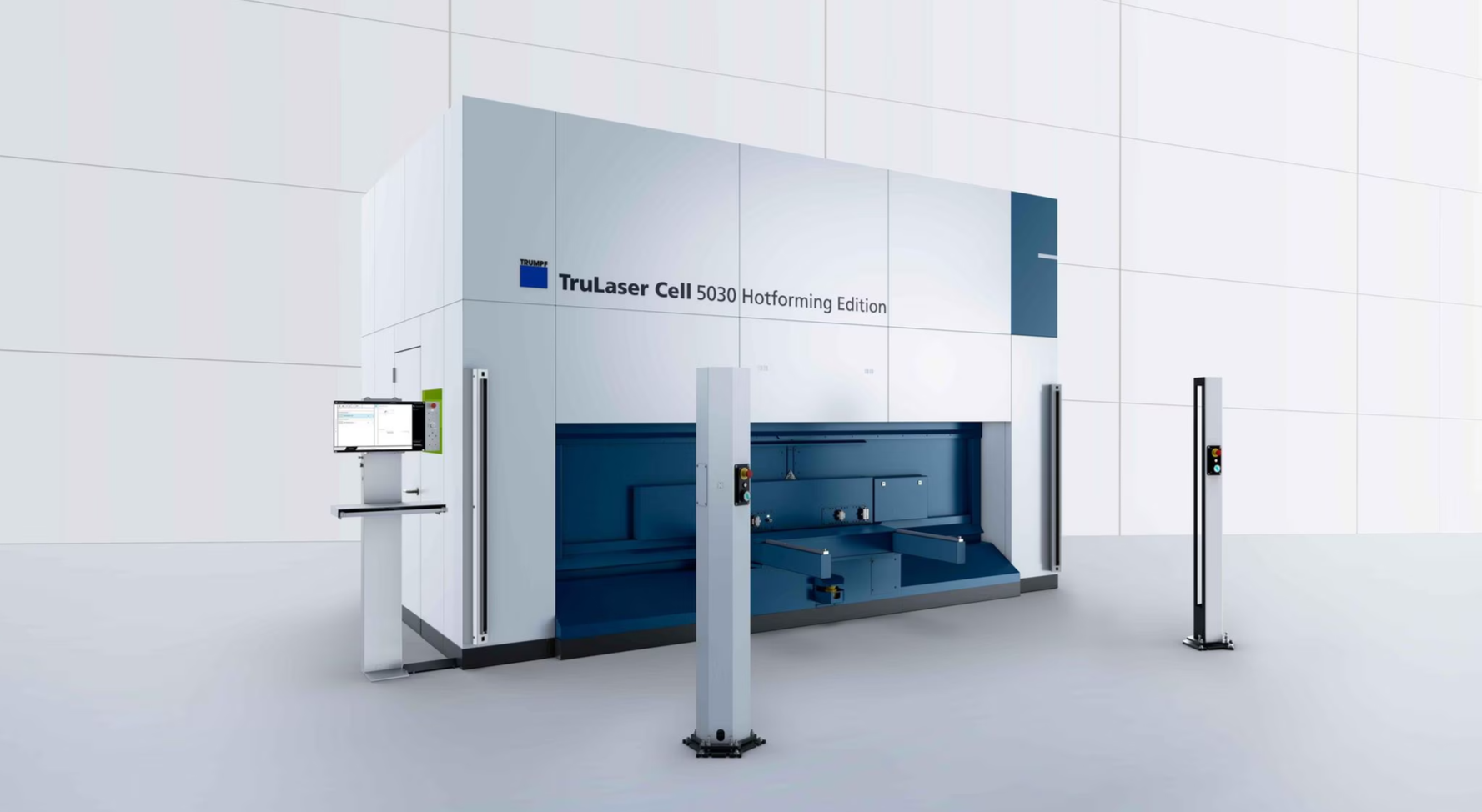

Specifically engineered as a cost-effective entry point for hot-formed component trimming, the 5030 Hotforming Edition offers an excellent price-performance ratio. It offers many of the same features as the high-end 8030, but at a lower initial investment.
A high-end, modular system engineered for maximum flexibility. The Series 7040 can be customized with different work area sizes and processing optics to handle cutting, welding, and surface treatment in one station.

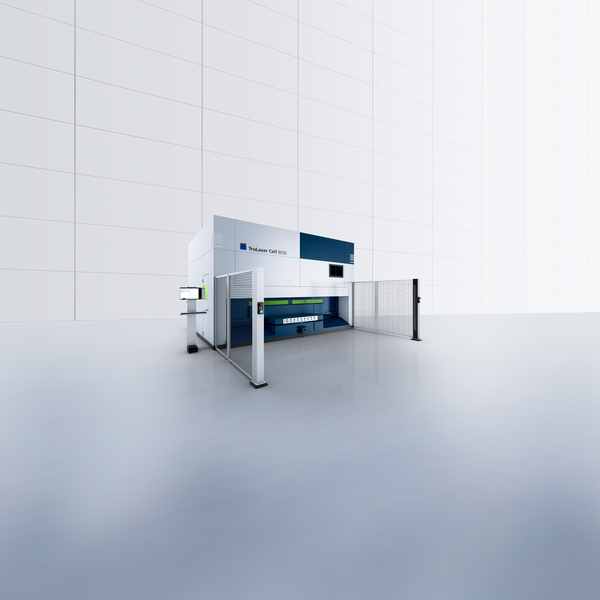

The global standard for 3D cutting of hot-formed components. The second-generation TruLaser Cell 8030 is optimized for the shortest cycle times and maximum process reliability, featuring the patented X-Blast technology to prevent nozzle collisions.
Why Fabricators Choose TRUMPF 3D Technology
As the pioneer in 5-axis laser processing, TRUMPF systems offer unique advantages that transform production efficiency:
2-in-1 Fiber Technology: Switch between cutting and welding without changing the laser light cable. The system automatically adjusts the beam profile to provide the optimum depth of field for each process.
Complex Geometry Mastery: Process deep-drawn parts, hydroformed tubes, and organic shapes that are impossible for standard 2D lasers or cost-prohibitive for mechanical machining.
X-Blast & ObserveLine: Advanced sensor systems like ObserveLine check axis precision and detect fallen waste in milliseconds, while X-Blast doubles the distance between the nozzle and the part to virtually eliminate collisions.
Minimized Secondary Operations: Laser-processed edges are smooth and burr-free, removing the need for post-cut grinding or deburring.
Precision and Repeatability: Linear direct drives ensure maximum positioning accuracy across the entire 3D working area, critical for the tight tolerances of medical and aerospace devices.
Choosing the Right 3D Laser System
Selecting a 3D laser depends on your part size and the variety of processes you need to perform:
For Prototyping & R&D: The TruLaser Cell 3000 provides the highest precision for small parts and additive manufacturing experiments.
For Mid-Range Hot-Forming: The TruLaser Cell 5030 Hotforming Edition is the best choice for shops needing 3D automotive trimming with a focus on a quick ROI and low overhead.
For High-Volume Automotive: The TruLaser Cell 8030 is specifically tuned for the speed and robustness required for hot-formed steel trimming.
For Large-Scale Versatility: The TruLaser Cell 7040 offers the largest work envelopes for oversized components in the energy and transportation sectors.
Need a technical evaluation of your 3D components? Talk to a Maintecx expert
FAQs About 3D Laser Cutting
-
TRUMPF 3D systems process virtually any metal, including mild steel, galvanized sheet metal, high-strength hot-formed steel, aluminum, titanium, and stainless steel.
-
Yes. Most TruLaser Cell models are designed for multi-process use. By swapping the processing optics, you can transition from 3D cutting to high-speed laser welding or LMD.
-
Laser cutting is significantly faster and involves no tool wear. It can produce finer details and tighter internal radii that a mechanical cutting tool cannot, while maintaining a minimal heat-affected zone.
-
LMD is an additive manufacturing process in which a laser creates a melt pool on the component surface while a nozzle adds metal powder. This is used for repairing expensive components, adding features to existing parts, or applying wear-resistant coatings.
