TruLaser Cell 8030
Maximum Productivity for Hot-Formed Components
The TRUMPF TruLaser Cell 8030 is a high-end 3D laser cutting machine built to cut hot-formed components faster and more reliably than any other on the market. Whether you're processing B-pillars, door frames, or complete body-in-white side sections, this machine is engineered to keep up with high-volume automotive production without sacrificing precision.
Key Features
Fastest Rotary Table on the Market: The optimized rotary table completes a full rotation in just 1.8 seconds, 20% faster than the previous model, so every component cycle is shorter.
Two Configurations for Any Part Size: Choose the standard version for single body parts and segments, or the large version for door frames and full side sections. Both run the same 5-axis cutting architecture.
X-Blast Nozzle Technology: The X-Blast nozzle doubles the working bandwidth compared to standard nozzles, increasing the safe working distance and reducing nozzle collisions. The result is more consistent cutting quality and fewer interruptions.
Dynamic Level 3: Higher acceleration across all axes reduces cycle times by up to 7% for complex components without changing how the parts are fixtured or programmed.
Smart Approach: This patented piercing optimization reduces cycle time by up to 9% by improving the machine's approach to each component's edge.
BrightLine Speed: Increases cutting speed by up to 60% while reducing shielding gas consumption by up to 50%. More throughput and lower operating cost.
Applications
The TruLaser Cell 8030 is built for automotive and body-in-white production, specifically the high-volume cutting of hot-stamped parts. B-pillars, crossmembers, door rings, side sections, and structural reinforcements are all standard work for this machine. Because it uses a flexible laser tool rather than hard tooling, part programs can be quickly adapted to new geometries, even after initial production has started. That flexibility matters when model updates or engineering changes come mid-run.
It's also cost-effective for mass series production. The NC programming structure gives you full control over cutting geometry without requiring dedicated tooling changeovers between part variants.
TruLaser Cell 8030 Technical Data
Standard Version
Axis Travel Range
Maximum number of axes
5
X-Axis Travel Range
118.11 in
Y-Axis Travel Range
51.18 in
Z-Axis Travel Range
B Axis Travel Range
23.62 in°
C Axis Travel Range
± 135°
Dynamic Cutting Optics Travel
n x 360°
Maximum Workpiece Size
100.00 in
Max Size In X
Max Size In Y
33.07 in
Max Size In Z
14.57 in
Maximum Axis Speeds
Max Speed Axially Parallel in X
328 ft/min
Max Speed Axially Parallel in Y
328 ft/min
Max Speed Axially Parallel in Z
328 ft/min
Max Speed Simultaneous
568 ft/min
Max Speed of B-Axis
90 rpm
Max Speed of C-Axis
90 rpm
Maximum Axis Accelerations
Max Acceleration X
36.1 ft/s²
Max Acceleration Y
36.1 ft/s²
Max Acceleration Z
36.1 ft/s²
Max Acceleration Simultaenous
62.7 ft/s²
B Axis Acceleration
200 rad/s²
C Axis Acceleration
100 rad/s²
Dynamic Optics Acceleration
131.2 ft/s²
Positioning Accuracy
Linear Axes (X, Y, Z)
±0.00315 in (±0.08 mm)
Rotary Axis (B)
±0.015°
Laser
Max Laser Power
3,000 W – 4,000 W
Available Lasers
TruFiber
Rotary Table Automation
Work Stations
2
Typical Total Non-Productive Time
3.7 s
Typical Rotation Time
1.8 s
Diameter of the Rotary Plate
157.5 in (13.1 ft)
Working Height
27.56 in
Large Version
Axis Travel Range
Maximum number of axes
5
X-Axis Travel Range
118.11 in
Y-Axis Travel Range
82.68 in
Z-Axis Travel Range
25.59 in
B Axis Travel Range
± 135°
C Axis Travel Range
n x 360°
Dynamic Cutting Optics Travel
± 0.35 in
Maximum Workpiece Size
Max Size In X
100.00 in
Max Size In Y
64.57 in
Max Size In Z
16.54 in
Maximum Axis Speeds
Max Speed Axially Parallel in X
328 ft/min
Max Speed Axially Parallel in Y
328 ft/min
Max Speed Axially Parallel in Z
328 ft/min
Max Speed Simultaneous
568 ft/min
Max Speed of B-Axis
90 rpm
Max Speed of C-Axis
90 rpm
Maximum Axis Accelerations
Max Acceleration X
32.8 ft/s²
Max Acceleration Y
32.8 ft/s²
Max Acceleration Z
32.8 ft/s²
Max Acceleration Simultaenous
56.8 ft/s²
B Axis Acceleration
200 rad/s²
C Axis Acceleration
100 rad/s²
Dynamic Optics Acceleration
131.2 ft/s²
Positioning Accuracy
Linear Axes (X, Y, Z)
±0.00315 in (±0.08 mm)
Rotary Axis (B)
±0.015°
Laser
Max Laser Power
3,000 W – 4,000 W
Available Lasers
TruDisk
Rotary Table Automation
Work Stations
2
Typical Total Non-Productive Time
4.9 s
Typical Rotation Time
3.0 s
Diameter of the Rotary Plate
196.9 in (16.4 ft)
Working Height
27.56 in
661 lbs
Maximum Loading Per Side
1,653 lbs
Maximum Loading Per Side
Work In Tandem With
Software

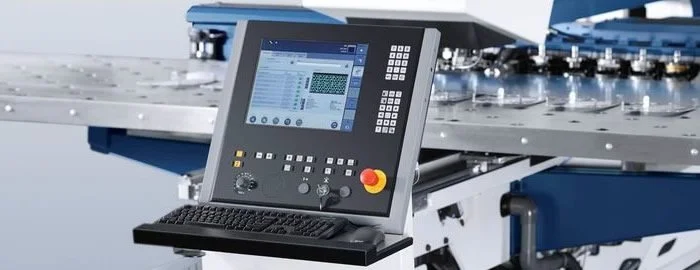

TruTops Cell programming software loads 3D CAD data, automatically generates cutting suggestions across all three dimensions, and can be used directly at the machine via TruTops Cell Shopfloor for fast, reliable program adjustments without leaving the floor.
Tools
The TruLaser Cell 8030 supports a full range of TRUMPF tooling and cutting optics, including FocusLine for program-controlled focal position adjustment and optional configurations for welding applications via WeldLine Basic.
Automation
The TruLaser Cell 8030's rotary table design is built for high-volume production with minimal operator intervention. Pair it with TRUMPF automation solutions to keep parts moving and machines running across full production shifts.
