TruLaser Cell 3000
Looking for a compact, flexible system that handles both laser welding and cutting? The TRUMPF TruLaser Cell 3000 delivers high-precision results in 2D and 3D, whether you’re processing small series, prototypes, or production-ready parts. With its modular design and 5-axis flexibility, it’s ideal for industries that have to be precise, such as medical, aerospace, and electronics.
What is the TruLaser Cell 3000?
The TruLaser Cell 3000 is a versatile 5-axis laser processing machine engineered for micrometer-level accuracy in welding and cutting. It combines power, precision, and speed in a compact footprint, making it a go-to choice for manufacturers that work with fine components or complex geometries.
This machine supports both 2D and 3D applications, and with the right nozzle setup, it can even perform tube and profile cutting.
Key Features and Capabilities
Compact 5-axis system: Process flat parts, 3D geometries, and tube materials with outstanding beam quality.
Dual-purpose machine: Seamlessly switch between laser cutting and welding in the same setup.
Dynamic movement: Fast linear and rotary axes enable short cycle times and tight tolerances.
Modular build: Configure the system to match your production environment and easily expand with automation later.
Automation-ready: Compatible with TRUMPF loading systems, sensor technology, and software for smarter workflows.
Laser source options: Compatible with a range of TRUMPF lasers for flexible performance and part quality.
TruDisk
The rotational changer enables loading and unloading parallel to production at quantities above 100,000 pieces/a.

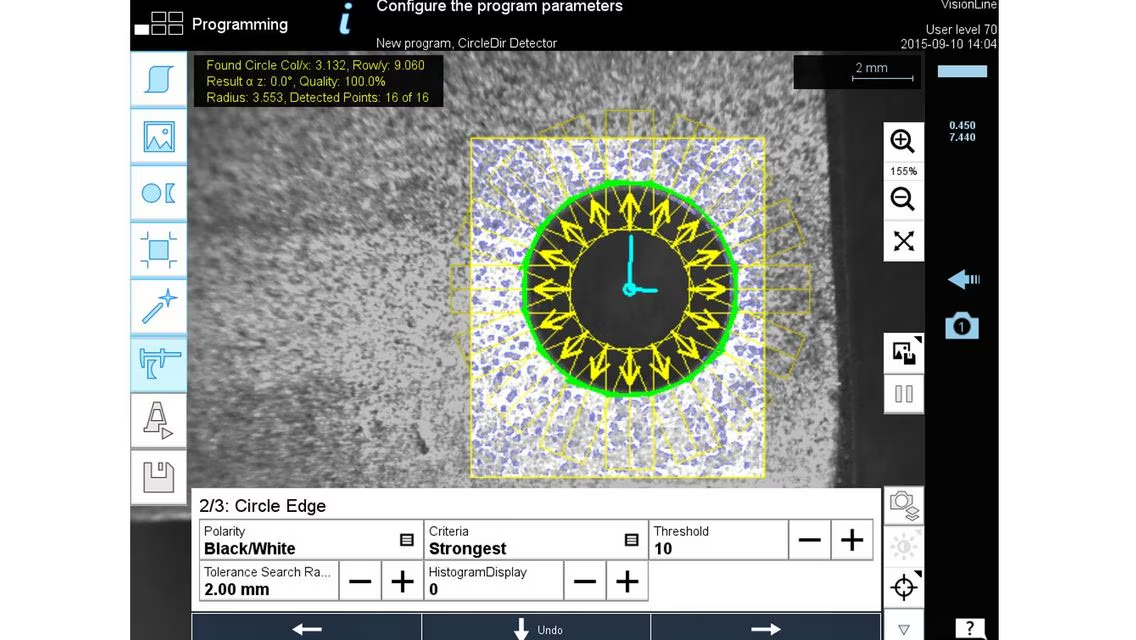

The intuitively operated image processing system VisionLine automatically detects geometric features on the component, such as joint gaps or edges.
With the additional workpiece axis (positioning axis in Z direction, 12 in. stroke) you can also process large 3D components, which can be up to 250% larger.
With the ergonomic teach panel you can program quickly and intuitively directly on the workpiece.
The variable clamping system of the TruLaser Cell 3000 allows you to take full advantage of all of the options of a unique and flexible workspace management system.
For loading and unloading from the side you can equip the TruLaser Cell 3000 with automatic side lifting doors.
BrightLine Weld: virtually spatter-free laser welding and top welding seam quality
ObserveLine Comfort has several advantages compared to measurement using distance regulation.
At regular, individually set intervals, the TRUMPF CalibrationLine tool checks whether the laser power on the workpiece actually meets your specifications.
Deep Welding
Extremely User-friendly and Ergonomic
The machine is equipped with highly dynamic linear direct drives.
The TruLaser Cell 3000 has a unique optics system for automatic adjustment of the focal diameter and focal position.
The direct, absolute measurement system with glass scale performs the positioning measurements for the X/Y axis.
In two-station operation with a rotary table you can produce and set up at the same time.
Applications Across Industries
The TruLaser Cell 3000 excels in high-precision environments:
Medical Technology: Surgical instruments, implants, and precision tubing
Aerospace: Lightweight structural components, turbine elements, and safety-critical welds
Automotive & E-Mobility: Battery housings, motor components, and powertrain systems
Electronics: Sensor housings, micro-welds, and tight-tolerance enclosures
Job Shops: Ideal for short-run and high-mix production where flexibility is key
Why Choose the TruLaser Cell 3000?
This system offers a rare combination of agility and precision in a single package:
One machine, multiple processes: Laser weld and cut in the same workspace
Short setup times: Rapid nozzle changes and user-friendly programming
High repeatability: Perfect for parts that require tight tolerances
Software compatibility: Integrated with TRUMPF’s TruTops and offline programming tools
Sustainability and uptime: Designed for energy efficiency and low-maintenance operation
TruLaser Cell 3000 Technical Data
Axis Travel Range
X Axis Travel
31.50 in (800 mm)
Y Axis Travel
23.62 in (600 mm)
Z Axis Travel
15.75 in (400 mm)
Maximum Axis Speeds
Max Speed X (axially parallel)
1,968.5 in/min (50 m/min)
Max Speed Y (axially parallel)
1,968.5 in/min (50 m/min)
Max Speed Z (axially parallel)
1,968.5 in/min (50 m/min)
Max Simultaneous Axis Speed
3,346.5 in/min (85 m/min)
B Axis Max Speed
7.2 RPM (120 1/min)
Maximum Axis Accelerations
Max Acceleration X
32.81 ft/s² (10 m/s²)
Max Acceleration Y
32.81 ft/s² (10 m/s²)
Max Acceleration Z
32.81 ft/s² (10 m/s²)
Max Simultaneous Acceleration
55.77 ft/s² (17 m/s²)
B Axis Acceleration
20,649 °/s² (130 rad/s²)
Positioning Accuracy
Linear Axes (X, Y, Z)
±0.00059 in (±0.015 mm)
Rotary Axis (B)
±0.02°
Laser
Max Laser Power
8,000 W
Available Lasers
TruDisk, TruFiber, TruDiode
Work In Tandem With
Options & Upgrades
Rotary Axis Add-On: For tube and profile processing
Clamping Systems: Configurable based on part geometry
Sensor Integration: Seam tracking, weld monitoring, and quality assurance tools
Automation Packages: Add part loaders, unloaders, or robotic handling systems as needed Learn more about TRUMPF automation
Software Integration
Works seamlessly with TRUMPF’s TruTops Cell software for offline programming, simulation, and collision detection, as well as third-party CAM software for custom workflow setups
Request a Quote from Maintecx
Ready to bring precision laser processing in-house? As an authorized TRUMPF partner, Maintecx helps you spec, integrate, and support the right solution for your needs. Whether you’re cutting intricate parts or welding fine assemblies, the TruLaser Cell 3000 delivers the flexibility and performance to get it done right.
