Punch Laser Machines
TRUMPF laser punching machines combine high-speed punching and fiber laser technology at the highest industrial level. By pairing high stroke rates with additional, high-powered laser axes, these systems process parts of almost any shape with cycle times as low as one second. This integration enables a complete manufacturing workflow, including laser cutting, punching, forming, and tapping, on a single machine. This all-in-one approach removes the bottlenecks associated with manual material handling and secondary work centers.
Maintecx helps fabricators implement these reliable, automation-ready systems to drive productivity and maintain a competitive edge.
Explore Our TRUMPF Punch Laser Machines
A versatile all-rounder that combines the advantages of punching technology with high-quality laser cutting. This compact system is ideal for shops that require flexibility across diverse material types and thicknesses.

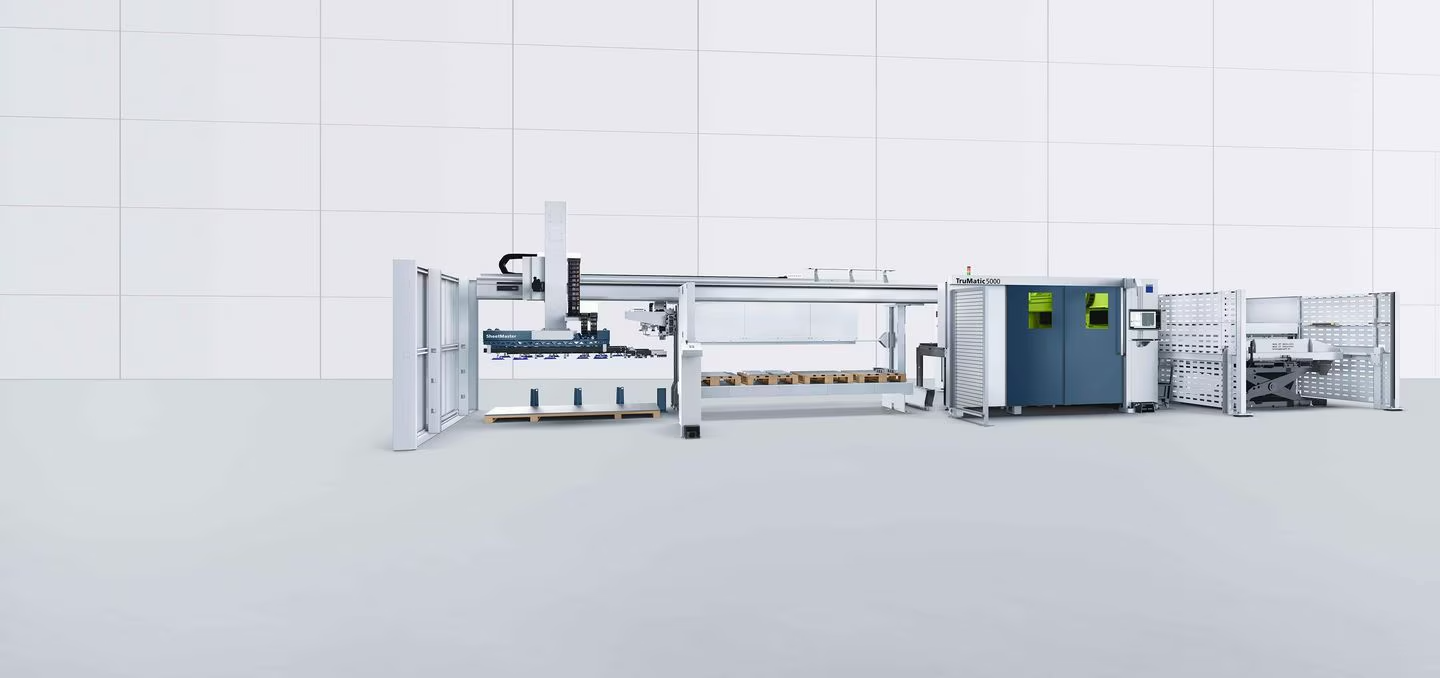

Built for versatile sheet metal production, the TruMatic 5000 combines punching and fiber laser cutting in one efficient platform. It delivers reliable automation, integrated forming capabilities, and high part quality.
Engineered for high-volume series production and 24/7 operation, the TruMatic 7000 offers the highest power and fastest cycle times. With additional laser axes and an active forming die, it provides maximum throughput for complex geometries.
Why Fabricators Choose TRUMPF & Maintecx
TRUMPF punch laser combination machines provide a complete manufacturing solution by transforming how shops handle sheet metal fabrication.
All-in-One Process: Replace standalone punching and laser machines with a single automated process to reduce part handling.
Increased Throughput: High-power fiber lasers handle intricate contours while the punching head manages standard holes and forms at speeds exceeding 1,000 hits per minute.
The Delta Drive Advantage: Patented electric drive technology reduces energy consumption by up to 30% compared to hydraulic systems while increasing punching dynamics.
Eliminate Secondary Operations: Form ribs, tap threads, and debur edges within the machine cycle to move parts directly from the table to assembly.
Scratch-Free Processing: Active die technology and brush tables protect sensitive materials throughout the entire cutting and punching sequence.
Automation-Ready: Integrate with SheetMaster and SortMaster for automatic loading, unloading, and part sorting to keep production moving around the clock.
Connected Production: Utilize Oseon software for seamless job sequencing, nesting, and real-time shop floor transparency.
Maintecx Expertise: Our team helps you align TRUMPF combination solutions with your specific part mix and ROI targets.
Choosing the Right Laser Punching Machine
Every shop’s requirements differ based on material thickness, part complexity, and volume. Here is a guide to help you find the right fit for your operation:
Future-Proofing Your Shop: The TruMatic 1000 Fiber is the only machine in its class that allows you to add a fiber-delivered TruDisk laser to your punching unit as your business grows.
High-Mix Production: The TruMatic 3000 Fiber balances speed and precision for shops handling a wide variety of daily jobs and materials.
Heavy-Duty Series Production: The TruMatic 7000 provides the power, range, and automation required for the most demanding 24/7 manufacturing environments.
Need more tailored guidance? Talk to a Maintecx expert
FAQs About Punch Laser Machines
-
A combination machine eliminates the need to move parts between work centers, reducing labor costs and the risk of damage. It also enables laser cutting and punching on the same part with precise registration.
-
Yes. TRUMPF TruMatic machines can create forms like louvers or countersinks and perform high-speed tapping within the same program as the laser cutting.
-
The Delta Drive allows the punching head and the sheet to move independently. This increases stroke rates and throughput while making the machine more compact and energy-efficient.
-
Sometimes. Some TruMatic machines are designed to be compatible with larger systems, including SheetMaster for loading/unloading and STOPA for large-scale material storage. While all TruMatic machines can have some level of automation added to them.
-
As your exclusive regional partner, Maintecx provides local installation, factory-trained service, and regional training to ensure your system performs at peak capacity from day one.
