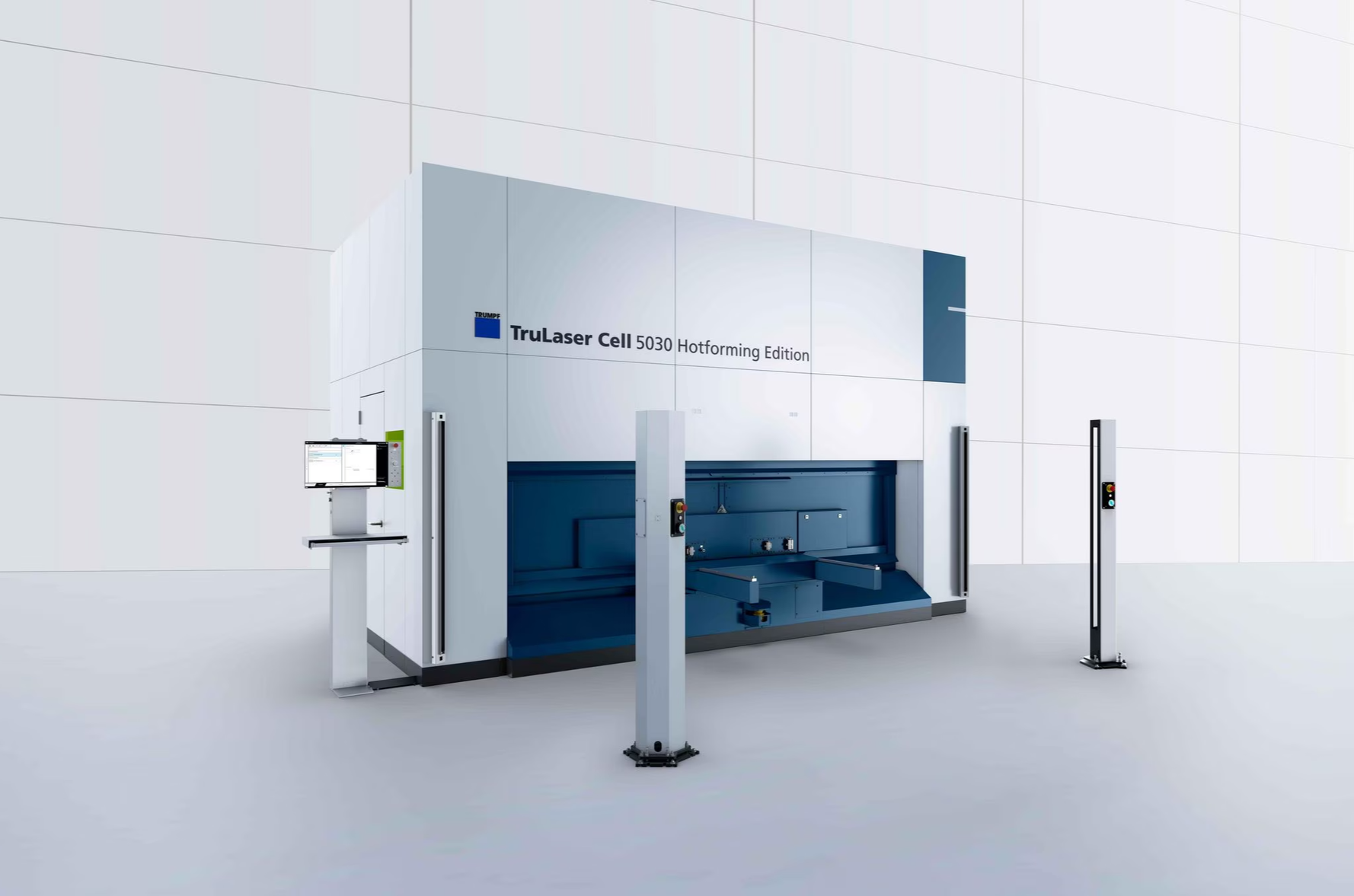

TruLaser Cell 5030 Hotforming Edition
Entry-Level 3D Laser Cutting Machine for Hot-Formed Components
The TRUMPF TruLaser Cell 5030 Hotforming Edition gives shops a practical way to add 3D laser cutting of hot-stamped parts without the capital outlay of a high-end platform. The 5030 HFE handles B-pillars, crossmembers, structural reinforcements, and more with good dynamics, fast cycle times, and the robustness that comes from TRUMPF's experience with the world's largest installed base of 3D hot-forming machines.
Key Features and Capabilities
X-Blast Nozzle Technology: Doubles the working bandwidth compared to standard nozzles. The wider bandwidth increases the safe working distance, reducing nozzle collisions and maintaining process stability over longer runs.
Dynamic Level 3: Good basic machine dynamics keep the 5030 HFE ahead of the competition in its segment. Higher acceleration across all axes reduces cycle times without requiring changes to fixturing or programming.
FastLine Cell Basic: Improves the machine's approach behavior during piercing. Depending on material type, thickness, and contour count, shops see productivity gains of up to 20%.
Short Non-Productive Times: The rotary table completes a full rotation in 2.4 seconds with a typical total non-productive time of 4.5 seconds. That keeps load/unload from becoming the bottleneck in production cycles.
Compact, Ergonomic Footprint: The 5030 HFE is designed for real-world floor use. The rotary table is accessible from the front and both sides, and the machine layout is flexible enough to fit your hall configuration.
ObserveLine Comfort & Professional: ObserveLine Comfort checks every contour for complete cuts using optical measurement and runs twice as fast as comparable systems. ObserveLine Professional monitors positioning accuracy at set intervals, with no refitting required and minimal impact on cycle time, catching small positioning errors that would otherwise accumulate into scrap.
Applications
Shops use the TruLaser Cell 5030 Hotforming Edition to cut hot-formed automotive parts, including B-pillars, crossmembers, door rings, structural reinforcements, and more. NC programming handles geometry changes without tooling changeovers, so part variants and mid-run engineering changes don't require a production stop.
The lower initial investment also makes this machine a practical starting point for operations that need to prove out 3D laser cutting before scaling up. If volume grows and capacity requirements change, TRUMPF's product line scales with it.
TruLaser Cell 5030 Hotforming Edition Technical Data
Axis Travel Range
X Axis Travel
129.92 in
Y Axis Travel
59.06 in
Z Axis Travel
23.62 in
Rotary Axes
B Axis
±135°
C Axis
n x 360° continuous
Maximum Workpiece Size
Maximum axis speed, axially parallel in X
197 ft/min
197 ft/min
Maximum axis speed, axially parallel in Y
197 ft/min
Maximum axis speed, axially parallel in Z
341 ft/min
Maximum axis speed, simultaneous
60 rpm
Maximum axis speed of the B axis
Maximum axis speed of the C axis
Maximum Axis Accelerations
31.2 ft/s2
Maximum axis acceleration, axially parallel in X
Maximum axis acceleration, axially parallel in Y
31.2 ft/s2
Maximum axis acceleration of the B axis
200 rad/s2
54.1 ft/s2
Maximum axis acceleration, simultaneous
Positioning Accuracy
Positioning accuracy of linear axes (X, Y, Z)
0.003 in
Positioning accuracy of rotary axes (B)
±0.015°
Laser
Maximum number of axes
5
Maximum axis acceleration, axially parallel in Z
31.2 ft/s2
Maximum axis acceleration of the C axis
100 rad/s2
3,000 W to 4,000 W
Maximum laser power
Available lasers
TruFiber
Positioning Accuracy
Maximum loading per side
573 lbs
Work stations
2
Typical total non-productive time
4.5 s
Typical rotation time
2.4 s
Diameter of the rotary plate
157.5 in (13.1 ft)
Working height
27.56 in
60 rpm
Work In Tandem With
Tools
The 5030 HFE supports TRUMPF tooling and cutting optics, including FocusLine, which adjusts focal position via program control depending on material type and thickness.
Automation
TruTops Cell loads 3D CAD data, generates cutting suggestions across all three dimensions, and runs at the machine via TruTops Cell Shopfloor for program adjustments directly on the floor.
