TruMatic 5000
High-Productivity Punch-Laser Combination
Experience the pinnacle of autonomous sheet metal processing with the TRUMPF TruMatic 5000. This high-end punch-laser combination machine is engineered for manufacturers who demand maximum throughput and flawless part quality. By integrating a powerful 6 kW fiber laser with high-speed punching and forming capabilities, the TruMatic 5000 enables multi-shift, lights-out production for even the most complex components.
Applications Best Used For
The TruMatic 5000 is the industrial benchmark for high-volume, complex fabrication. It’s particularly effective in sectors requiring intricate forming and high-speed cutting like:
Industrial Kitchen Equipment: Processing stainless steel with scratch-free precision.
Control Cabinet Manufacturing: Handling diverse hole patterns and forming operations in a single setup.
Furniture Industry: Creating aesthetic, ready-to-assemble metal components with integrated threads and bends.
Equipment Details

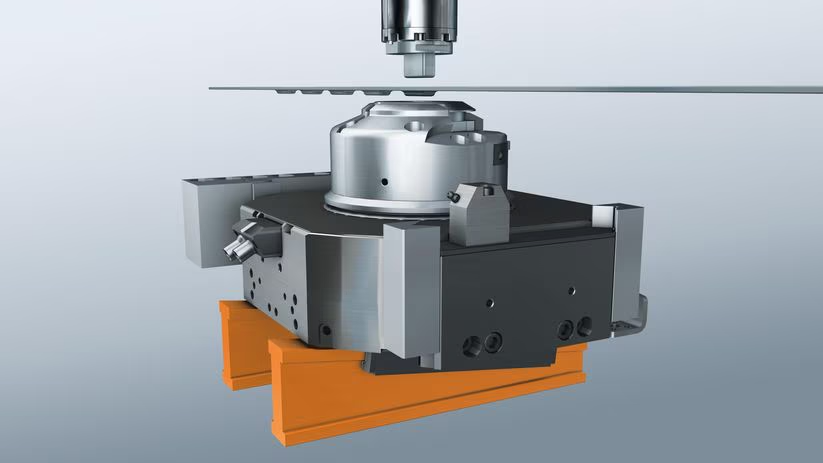

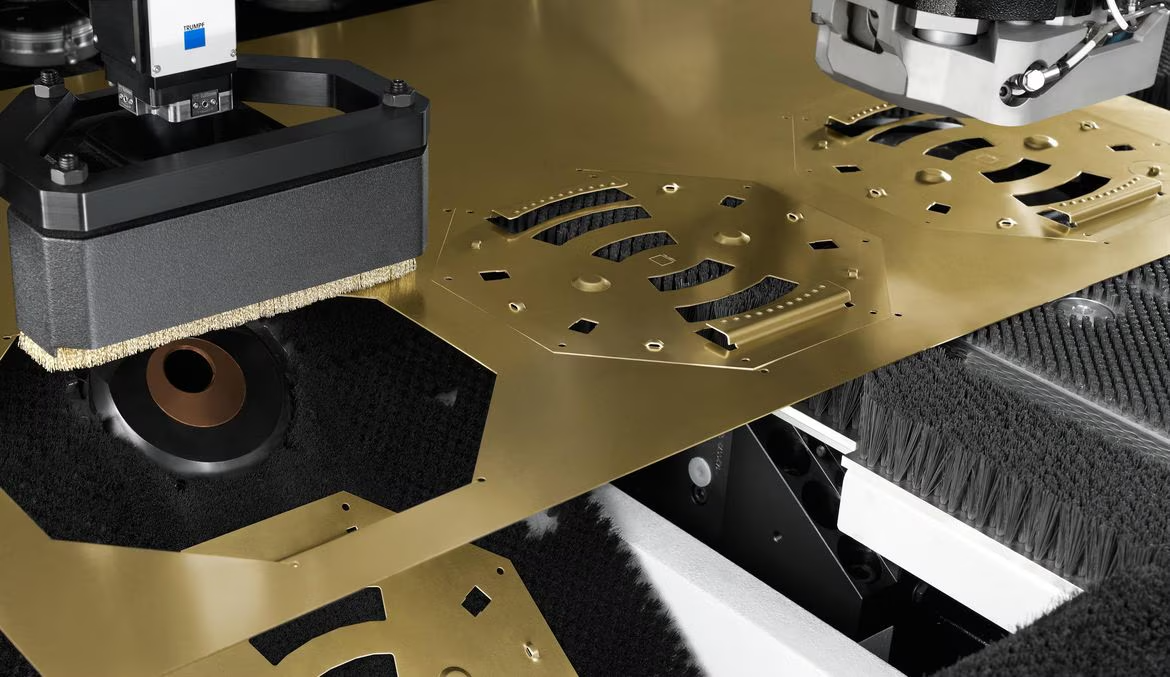

The TruMatic 5000 is built for speed and reliability. It features an active descending die for scratch-free forming and punching, as the sheet does not come into contact with the die during positioning. Its single-head cutting technology allows you to process all material thicknesses without manual intervention, while the high-dynamic drives maximum acceleration during the combined operation.
TruMatic 5000 Technical Data
TruMatic 5000 Large Format
(with new SheetMaster)
TruMatic 5000 Medium Format (with new SheetMaster)
DIMENSIONS
WIDTH
DEPTH
HEIGHT
743.31" (61.9 ft)
423.62" (35.3 ft)
145.67" (12.1 ft)
674.49" (56.2 ft)
443.31" (36.9 ft)
145.67" (12.1 ft)
MAXIMUM STROKE RATE
PUNCHING (E = 1 MM)
690 1/min
800 1/min
WORKING RANGE
PUNCHING MODE, X-AXIS
PUNCHING MODE, Y-AXIS
LASER OPERATION, X-AXIS
LASER OPERATION, Y-AXIS
COMBINED OPERATIONS, X-AXIS
COMBINED OPERATION, Y-AXIS
MAXIMUM SHEET THICKNESS
MAXIMUM WORKPIECE WEIGHT
MAXIMUM PUNCHING FORCE
98.43"
49.21"
98.43"
49.21"
99.8"
49.21"
0.25"
330.7 lbs
40,466 lbf (20.2 tons)
118.11"
61.02"
118.11"
61.02"
99.8"
61.02"
0.25"
507.1 lbs
40,466 lbf (20.2 tons)
TOOLS

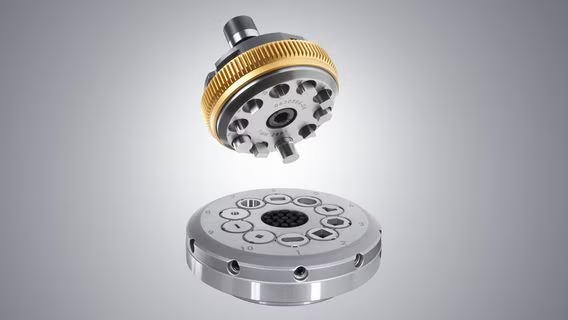

MULTITOOL CHANGING TIME
0.5 s
0.5 s
NUMBER OF TOOLS/CLAMPS
21 pcs / 3 pcs
21 pcs / 3 pcs
LASER-SPECIFIC DATA - TRUFIBER 6001
MAXIMUM LASER POWER
MAXIMUM SHEET THICKNESS,
MILD STEEL
MAXIMUM SHEET THICKNESS, STAINLESS STEEL
MAXIMUM SHEET THICKNESS, ALUMINUM
MAXIMUM SHEET THICKNESS,
COPPER
MAXIMUM SHEET THICKNESS,
BRASS
4000 W
0.31"
0.31"
0.24"
0.24"
0.24"
6,000 W
0.31"
0.31"
0.24"
0.24"
0.24"
PART REMOVAL
MAX. PART SIZE, FIXED CHUTE, PUNCHING (WITH MOVING TABLE)
7.09" x 7.09"
7.09" x 7.09"
MAX. PART SIZE, PART REMOVAL FLAP, LASER
15.75" x 23.62"
15.75" x 23.62"
MIN. PART SIZE (LASER CUT PARTS)
2.76" x 1.18"
2.76" x 1.18"
MAX. STACK HEIGHT (UNLOADING PLATFORM) ¹
13.39"
13.39"
1,000 1/min
MARKING
1,000 1/min
LOADING THE SHEETMASTER
MIN. SHEET SIZE
MAX. SHEET SIZE
MIN. SHEET THICKNESS
MAX. SHEET THICKNESS
MAX. SHEET WEIGHT
31.5" x 31.5"
120.75" x 60.31"
0.02"
0.25" / 0.31"
529.1 / 661.4 lbs
31.5" x 31.5"
98.43" x 49.21"
0.02"
0.31"
529.1 lbs
UNLOADING THE SHEETMASTER
MIN. PART SIZE (PUNCHING PARTS)
5.51" x 4.72"
5.51" x 4.72"
¹ Without load carrier
Integrate With TRUMPF’s TruTops Software
Streamline your production with the TruTops Boost software suite. This integration allows for automated nesting and optimized tool path generation for both the punch and the laser. Digitize your workflow for reduced setup times and maximum efficiency across your entire material mix.
Tool Add-Ons

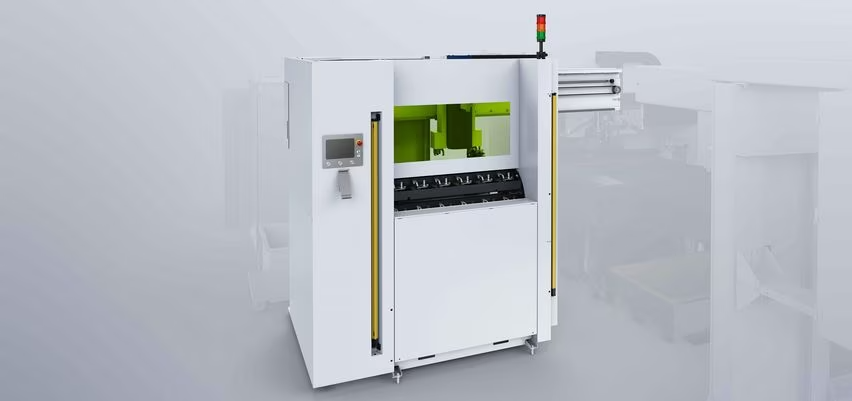

Customization is effortless with the TruMatic 5000's flexible tool system. It supports a wide range of TRUMPF tools for deburring, thread tapping, and sophisticated forming. When paired with the ToolMaster, the machine can store and automatically change up to 90 tools for hours of autonomous operation without manual retooling.
Automate Your Punching Processes

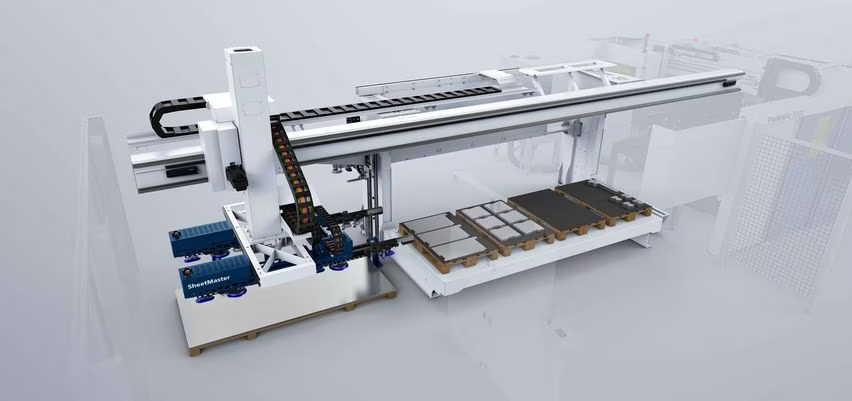

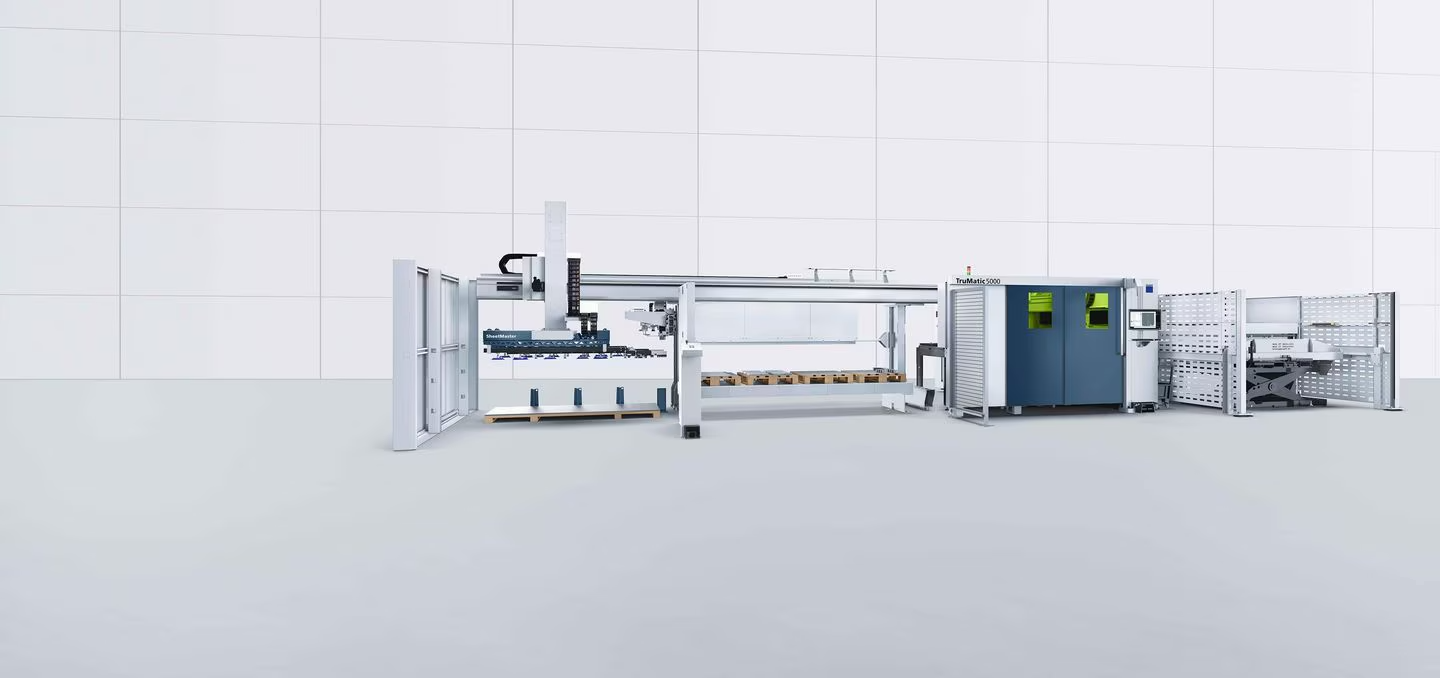

The TruMatic 5000 is designed for a fully automated smart factory environment. The SheetMaster handles the automated loading of raw sheets and the unloading and sorting of finished parts. For scrap management, the GripMaster automatically removes and stacks skeleton sheets, allowing the system to run multi-shift production cycles with minimal operator supervision.
Experience the TruMatic 5000 Difference
Elevate your manufacturing capabilities with the most productive punch-laser machine on the market. Contact us today to learn how the TruMatic 5000 can transform your shop floor.
