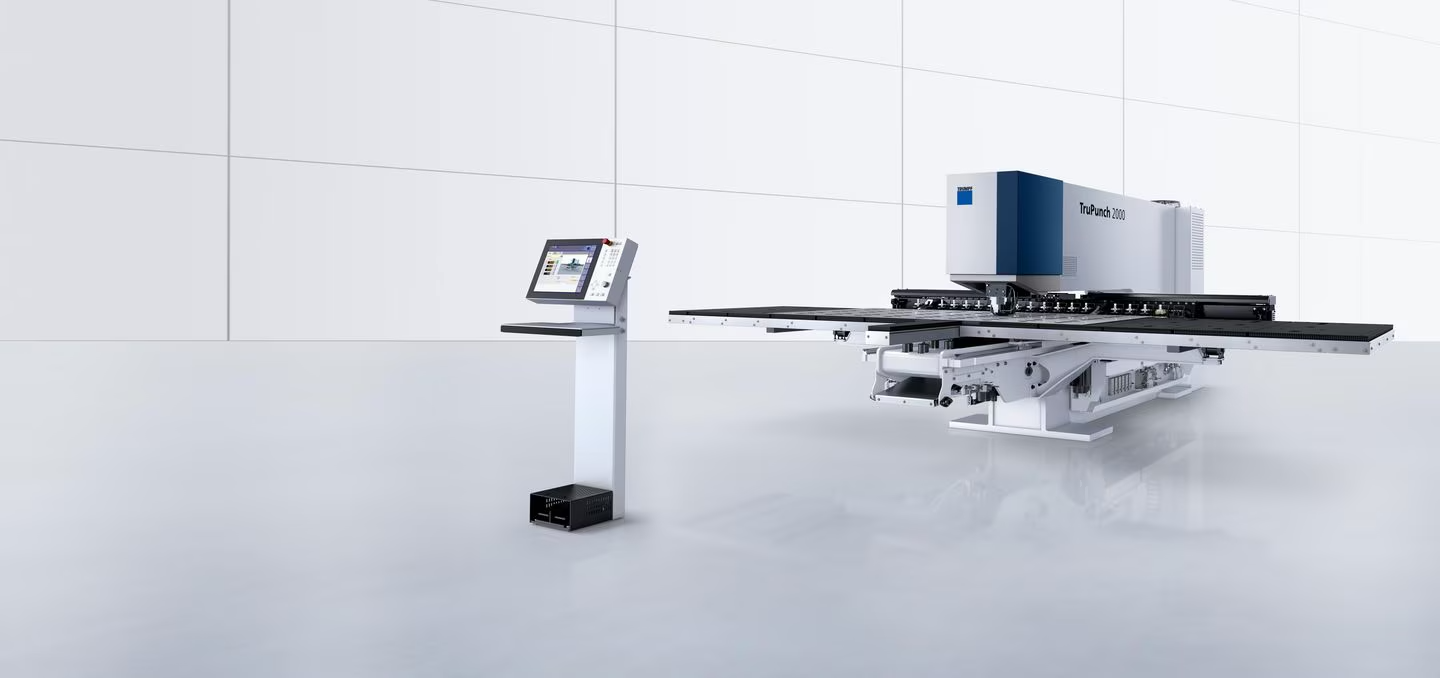

TruPunch 2000
Productive & Economical Automated Punching
The TRUMPF TruPunch 2000 is an economical, space-saving solution designed to maximize flexibility and productivity. Whether you’re managing peak-load production or looking for a reliable machine for small-to-medium formats, the TruPunch 2000 delivers the precision and speed required for the modern workshop.
Key Features
High-Speed Efficiency: Reach punching speeds of up to 900 strokes per minute to significantly shorten production cycles.

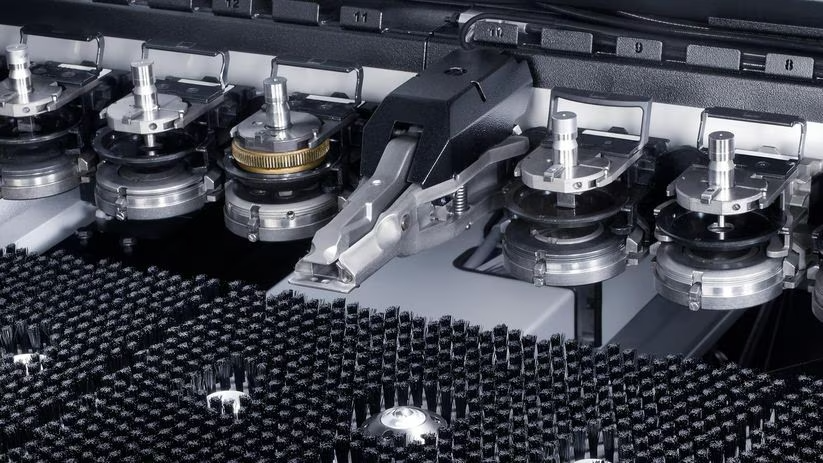

All-Tool Rotation: Every tool can rotate 360 degrees for complex forming, thread tapping, and marking with minimal setup time.
Accessible Design: The open C-frame design provides optimal access for loading and unloading, even for large formats or during manual operation.
Space-Saving Footprint: The compact design allows high-capacity production without occupying excessive floor space in your facility.
Electro-Hydraulic Punching: Achieves a maximum punching force of 165 kN with reduced energy consumption and high process reliability.
Applications

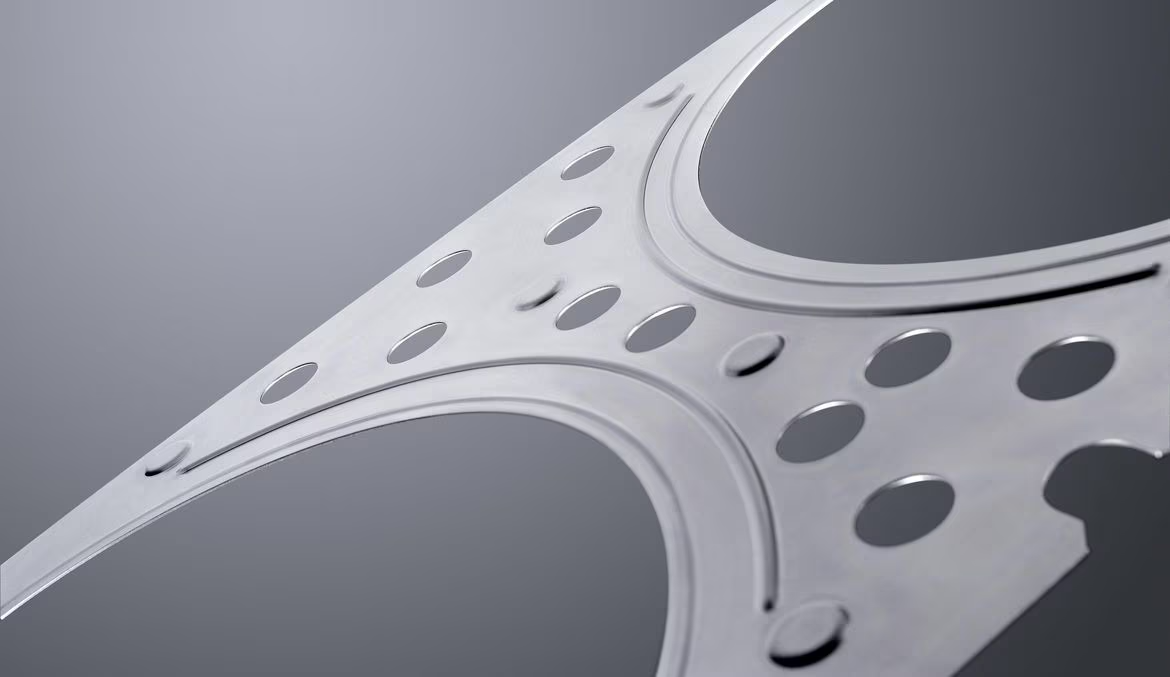

The TruPunch 2000 is engineered for a broad range of industries, including electronics, medical technology, and precision mechanical engineering. Its high flexibility makes it ideal for producing intricate components with complex forming requirements. With the ability to process sheet thicknesses up to 6.4 mm, it provides a versatile platform for both simple punching tasks and the fabrication of sophisticated 3D geometries.
TruPunch 2000 Medium Format
DIMENSIONS
WIDTH
DEPTH
HEIGHT
257.48" (21.5 ft)
284.92" (23.7 ft)
84.84" (7.1 ft)
MAXIMUM STROKE RATE
PUNCHING (E = 1 MM)
MARKING
900 1/min
1,600 1/min
WORKING RANGE
PUNCHING MODE, Y AXIS
MAXIMUM SHEET THICKNESS
MAXIMUM WORKPIECE WEIGHT
MAXIMUM PUNCHING FORCE
98.43"
49.21"
0.25"
330.7 lbs
37,093 lbf (18.5 tons)
MULTITOOL TOOL CHANGING TIME
PUNCHING MODE, X AXIS
TOOLS
2.4 s
NUMBER OF TOOLS/CLAMPS
18 pcs / 2 pcs
MAX. PART SIZE, PART REMOVAL FLAP, PUNCHING
MAX. PART SIZE, PART REMOVAL FLAP, PUNCHING (WITH MOVING TABLE)
7.09" x 5.91"
7.09" x 19.69"
PART REMOVAL
AVERAGE POWER INPUT OF ACTIVE AUTO-SHUTDOWN
0.3 kW
AVERAGE POWER INPUT IN PRODUCTION
4.5 kW
¹ Dimensions are approximate; the dimensions specified in the installation plan are valid.
MAX. PART SIZE, FIXED CHUTE, PUNCHING
(WITH MOVING TABLE)
18.11" x 19.69"
CONSUMPTION VALUES
Work In Tandem With
Automation

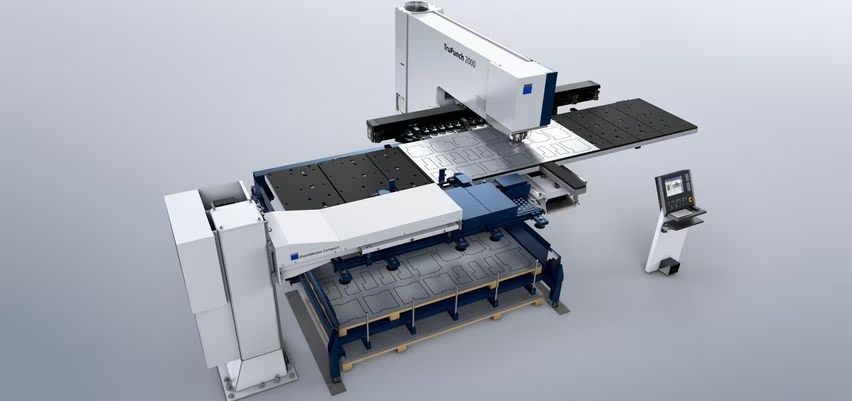

The TruPunch 2000 is built for automation. By integrating the SheetMaster Compact, you can automate the loading of raw sheets and the unloading of finished parts. This allows for high-capacity production cycles and peak-load relief with minimal operator intervention.
Tools

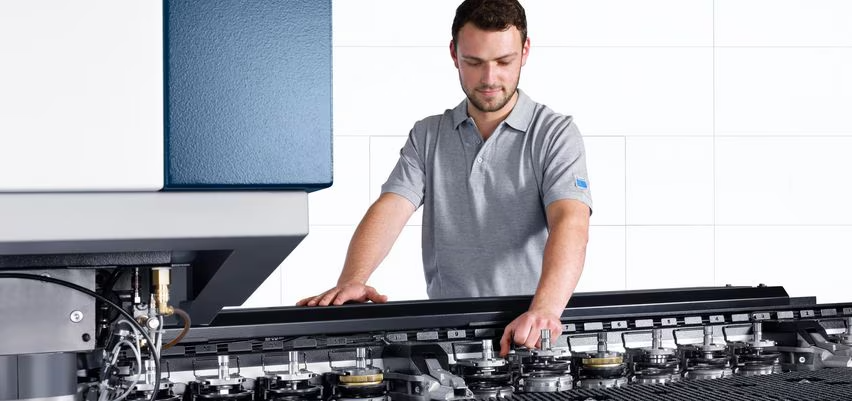

Utilize a wide array of high-quality TRUMPF punching tools. Thanks to the linear magazine and all-tool rotation, you can perform diverse operations, such as deburring, forming, and marking, using a single, standardized interface.
Software
Maximize your machine’s potential with advanced TRUMPF software solutions. These tools optimize punching paths, automate nesting to reduce material waste, and provide a seamless digital workflow from design to finished part.
