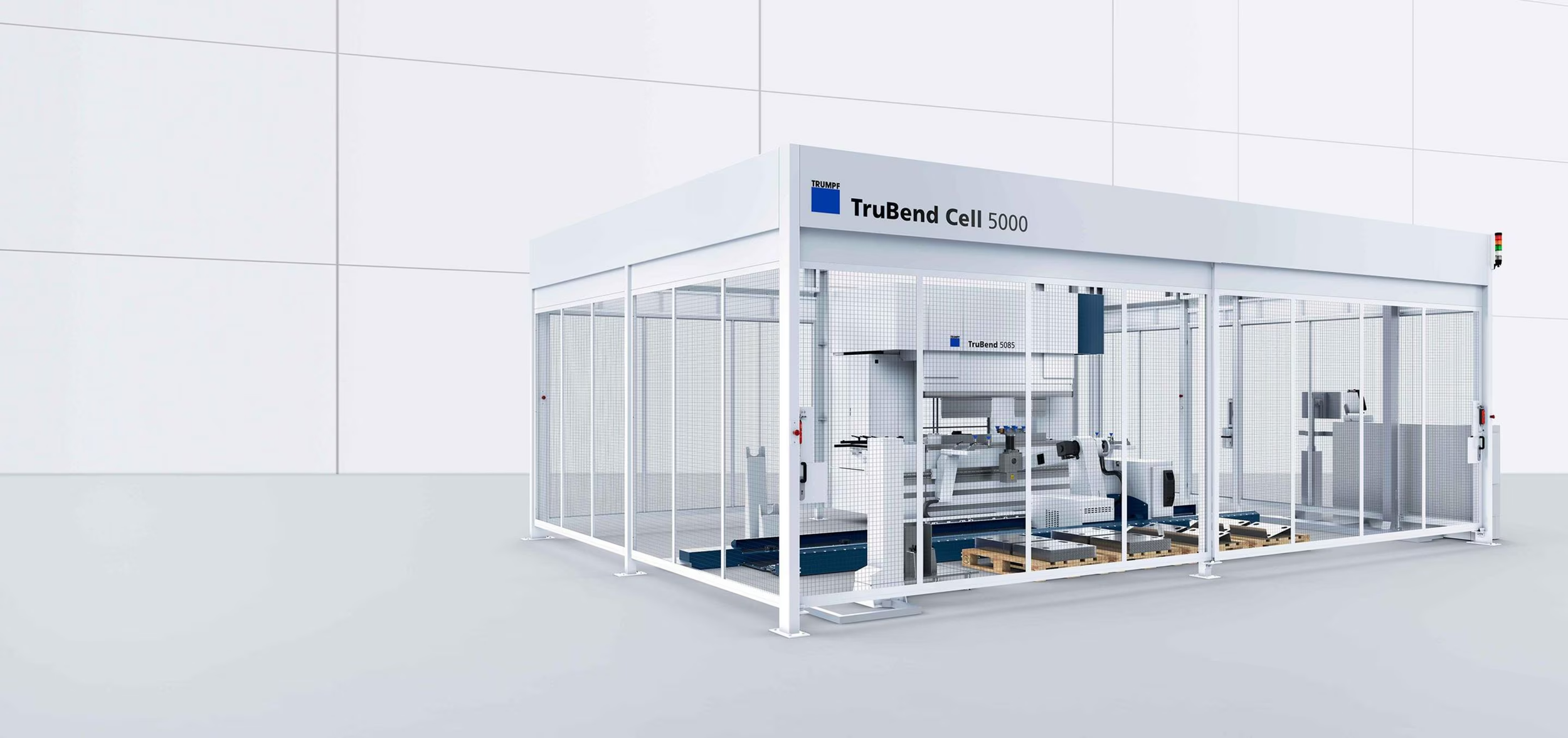

TRUMPF TruBend Cell 5000 Lean Edition
Accessible Automated Bending
The TRUMPF TruBend Cell 5000 Lean Edition brings the power of high-performance bending automation to more shops by offering a cost-effective, compact solution for small and medium part production. Designed with efficiency, simplicity, and flexibility in mind, this system includes core automation features that minimize manual labor, reduce setup time, and deliver consistent part quality. Ideal for fabricators ready to take their first step into bending automation, the Lean Edition is proof that you don’t have to go big to automate smart.
Key Features
Compact Automation: All essential automation is built into a small footprint, making it easy to integrate into existing production lines.
BendMaster 60 Edition: A streamlined robotic arm handles small to medium-sized parts with precision and repeatability.
Smart Gripper System: Intelligent gripper recognition and fast switching for reliable handling across different part geometries.
ACB Wireless Angle Measurement: Ensures accurate, real-time bending angle correction without manual adjustments.
ToolMaster Lean: Quick-change tooling system reduces setup time and simplifies job changeovers.
Modular Flexibility: Start lean and expand as needed. Upgrade options allow you to scale your automation.

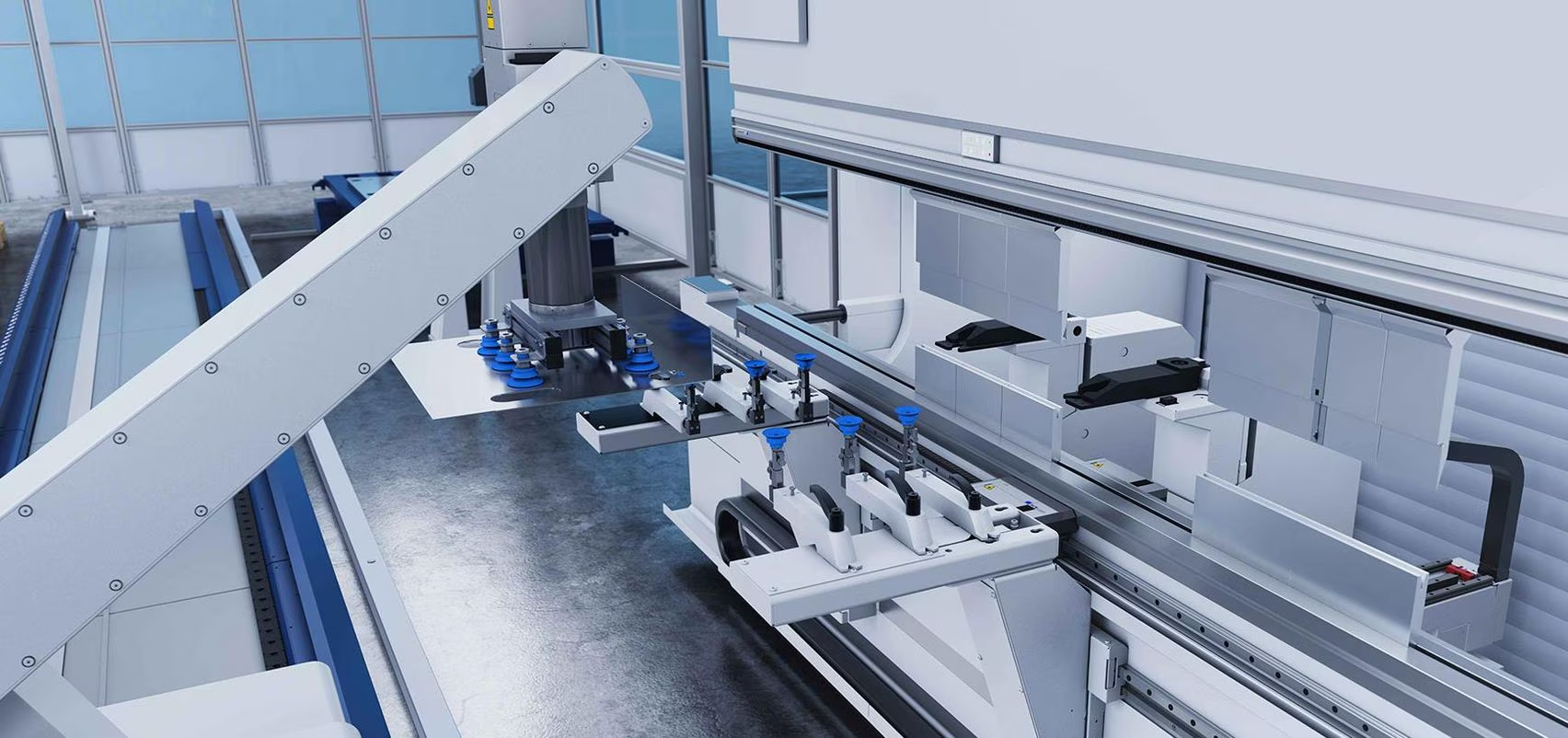

The BendMaster has a carrying capacity of 60 kg.

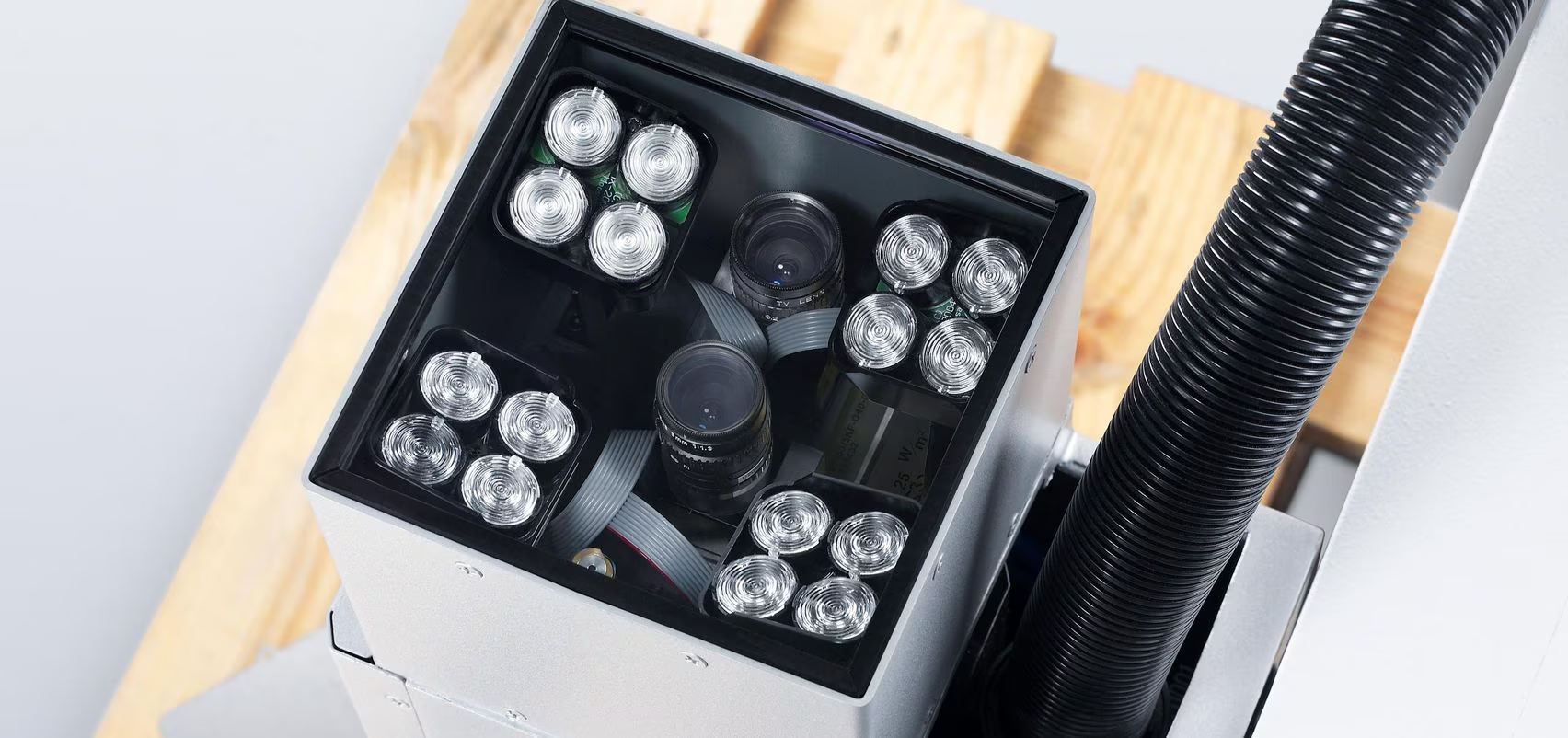

Sheet sensors detect the precise position of the components so that they are precisely recorded.

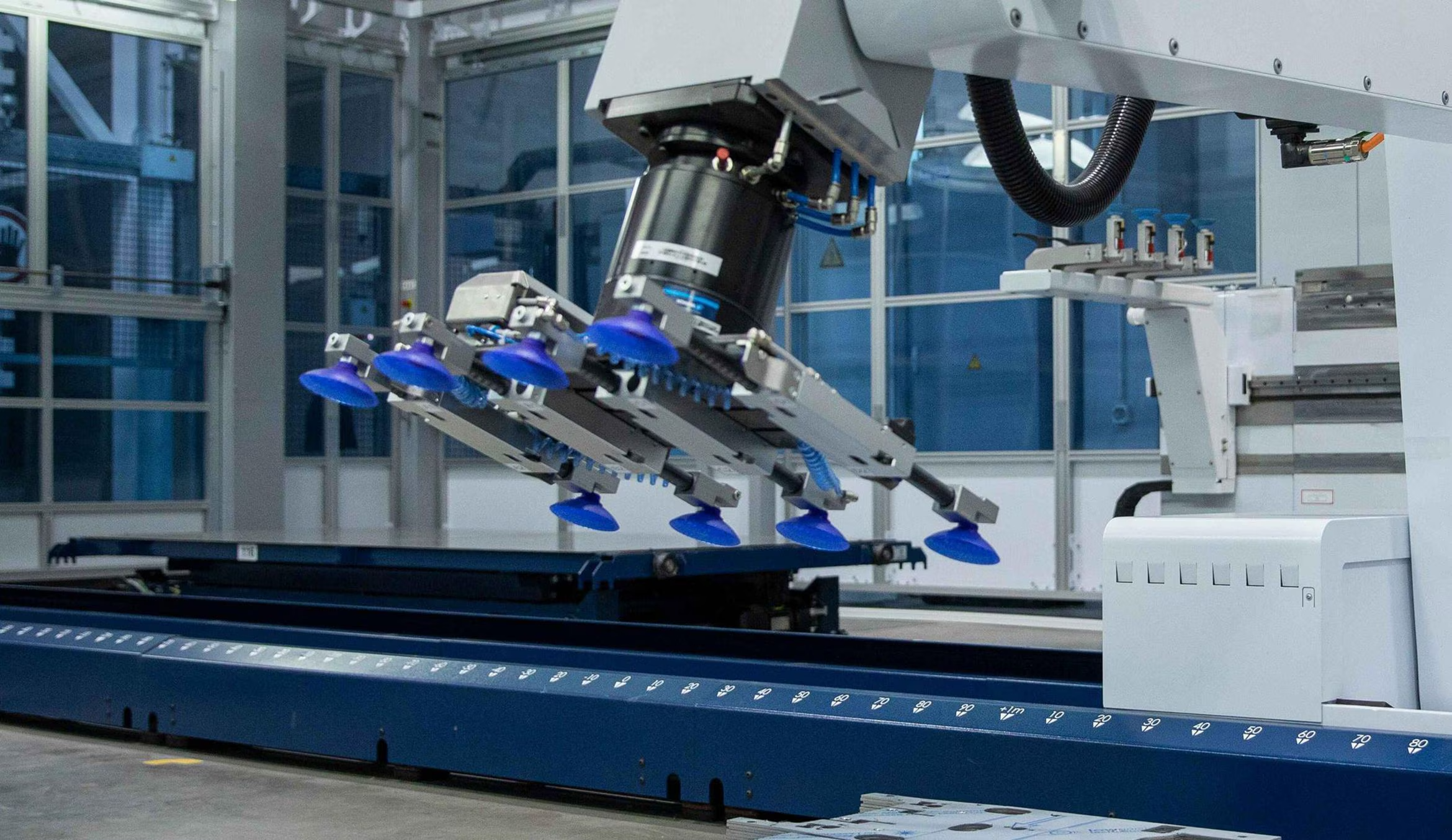

Grippers with vacuum technology facilitate the handling of your components.

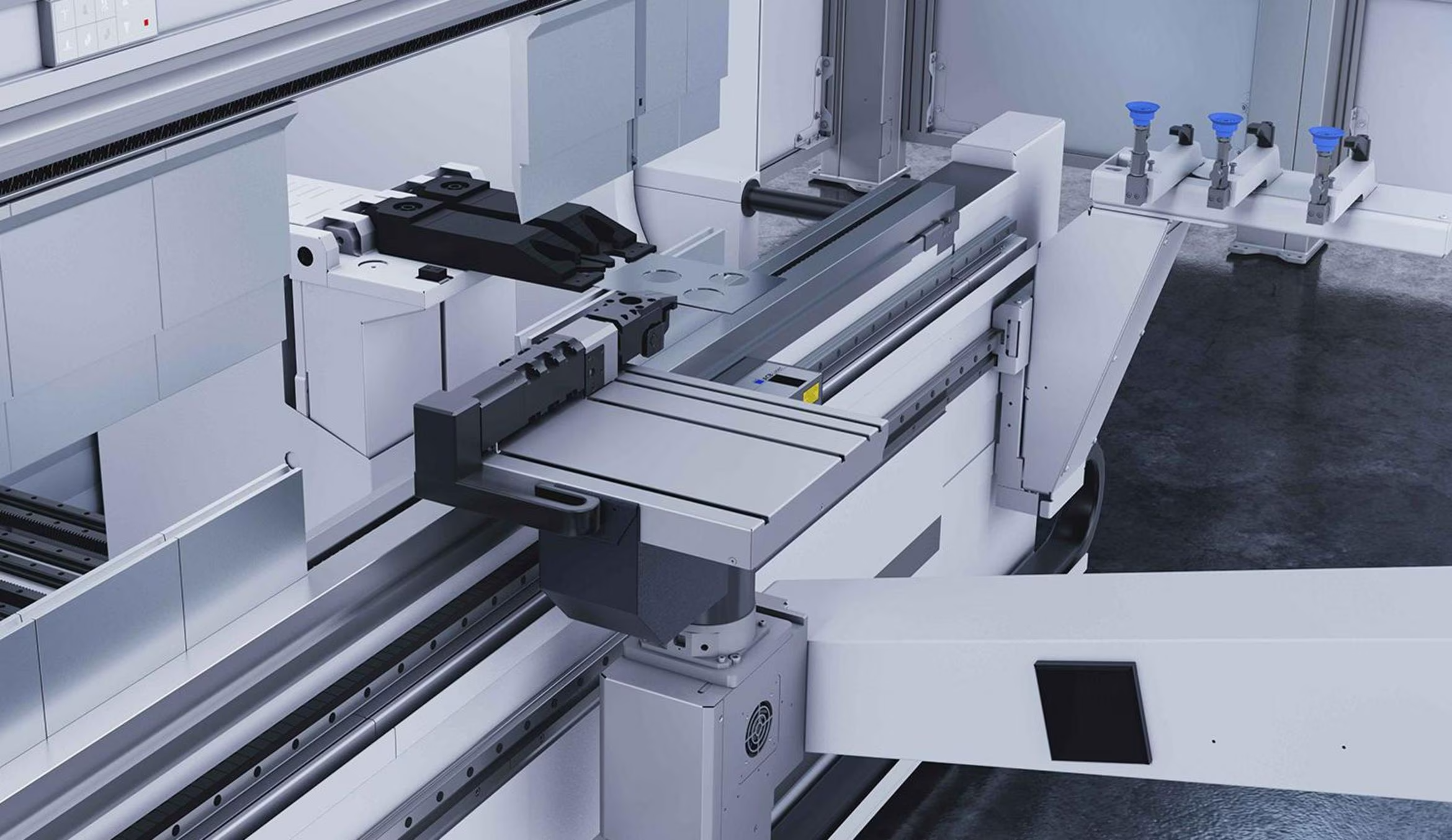

The pivoting-jaw gripper helps to bend small components automatically.

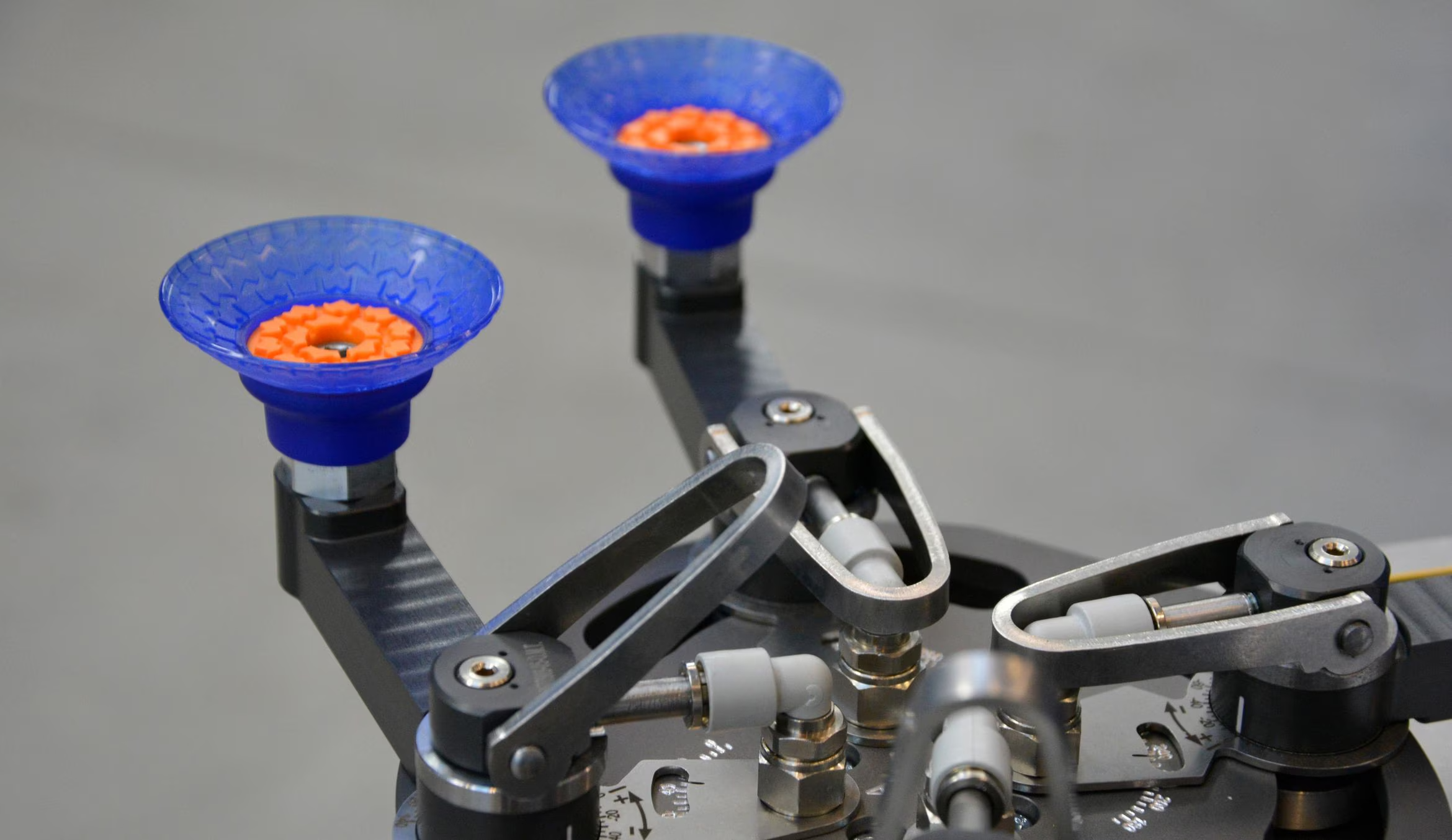

Thanks to its 180 degree rotation unit, it also saves valuable cycle time when bending boxes.

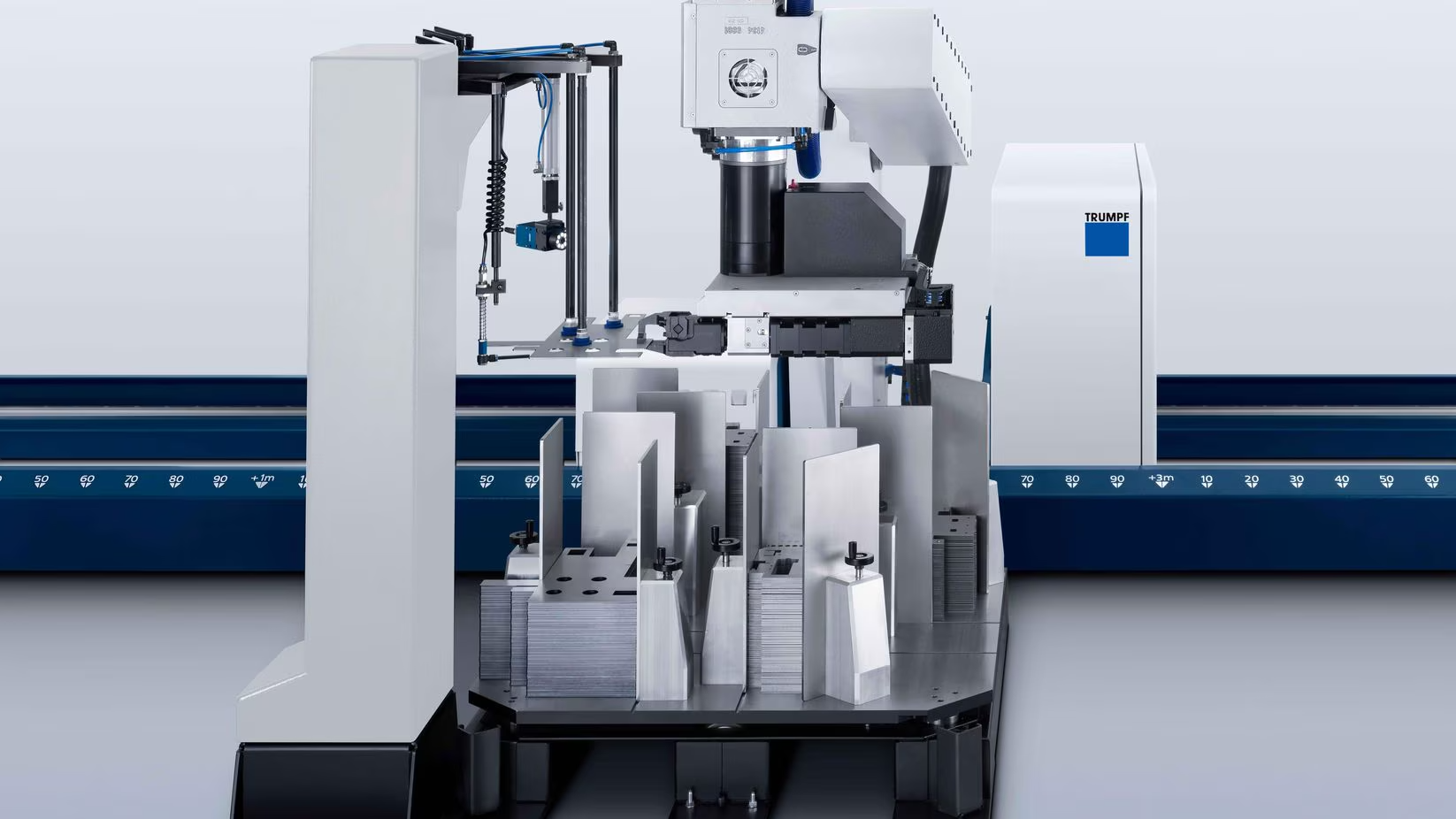

The small parts package consists of a sheet removal station and gripper.

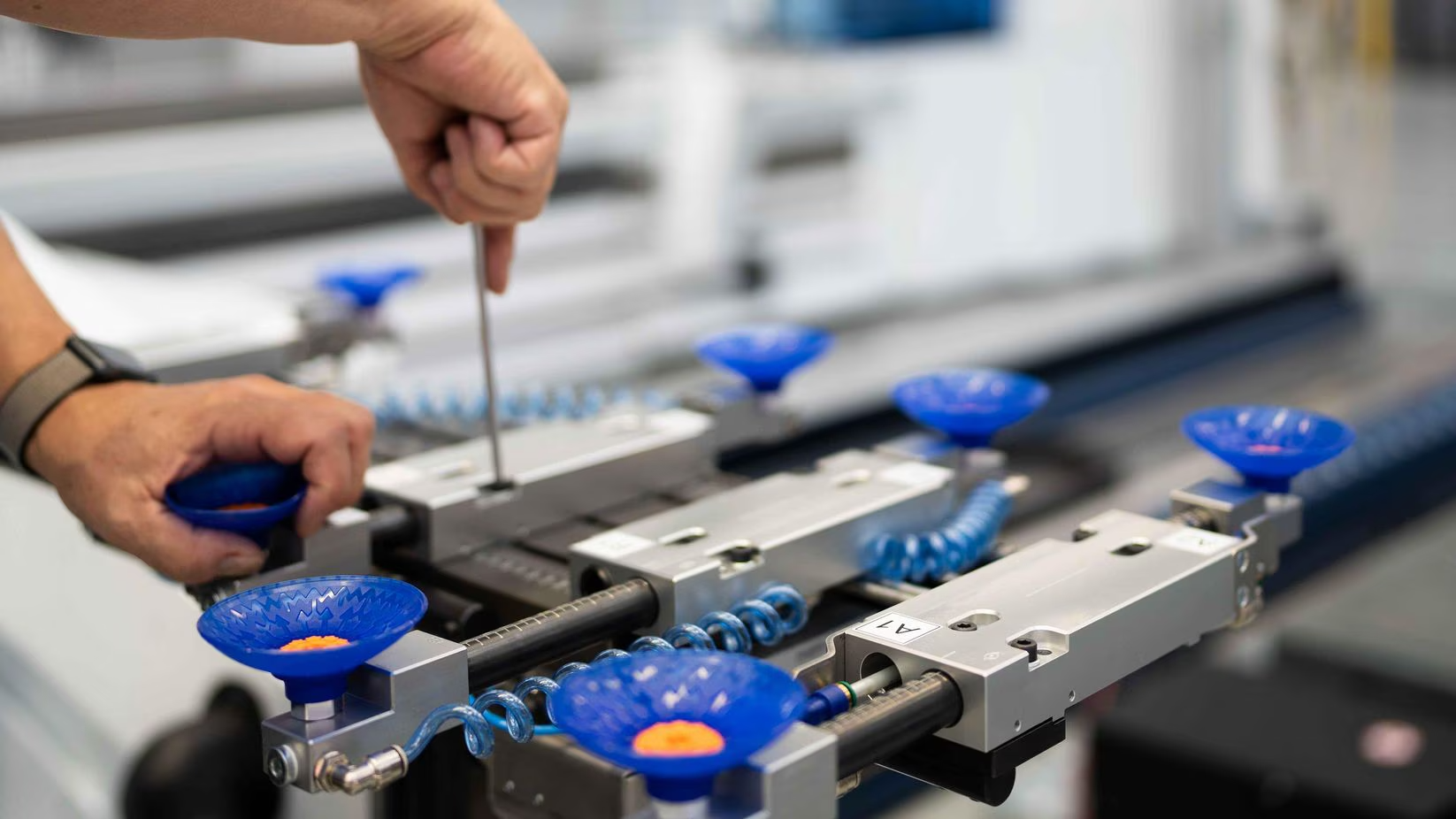

You can configure your gripper in the TRUMPF offline programming system in just a few minutes.

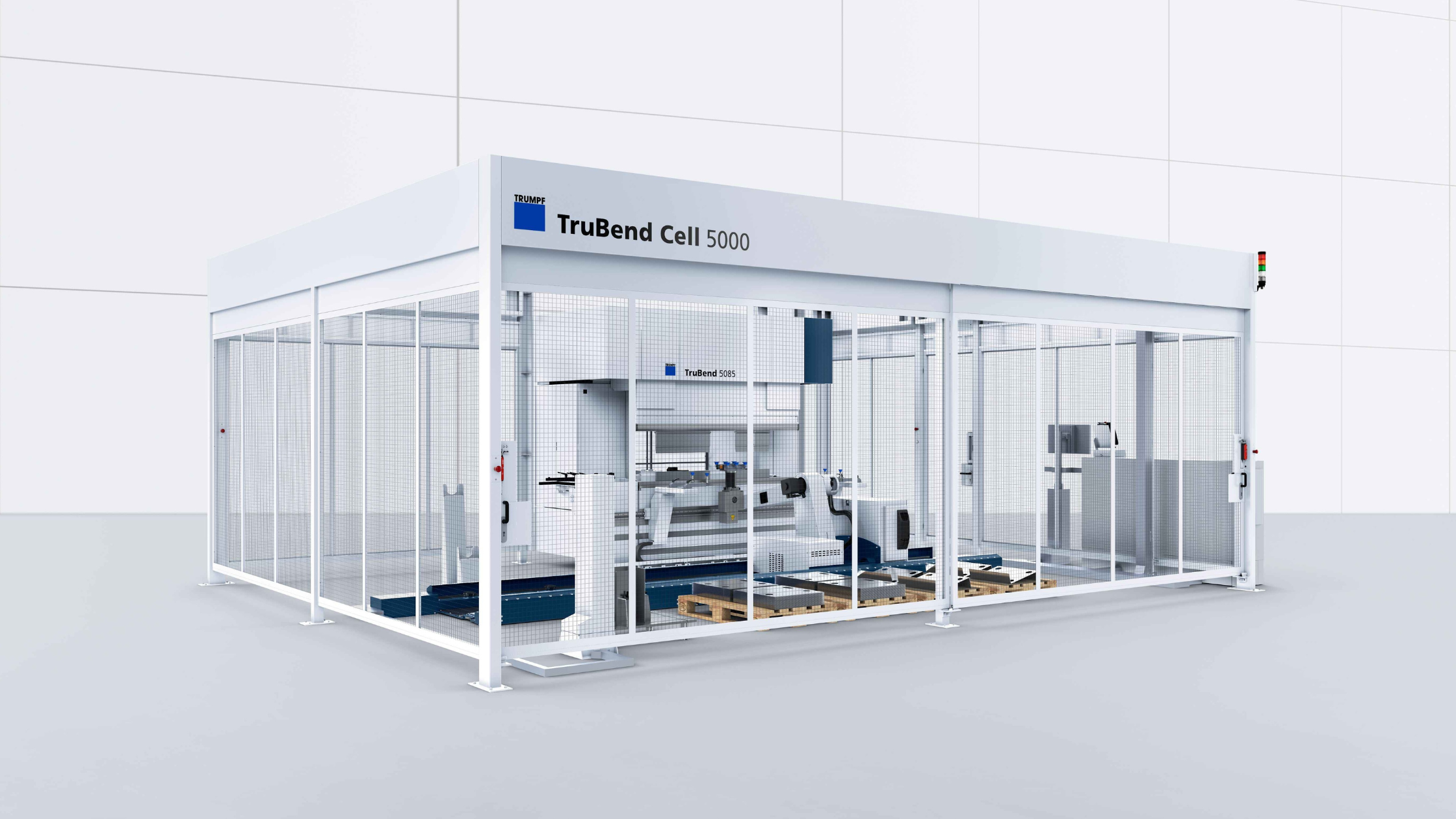

The console replaces grippers independently and can process orders automatically without manual intervention.
Applications
The TruBend Cell 5000 Lean Edition is optimized for:
Small to Medium Parts: Handles lightweight sheet metal parts across various industries.
Precision Bending: Consistently delivers accurate bends, ideal for enclosures, brackets, panels, and electrical components.
Mid-Volume Production: Suitable for manufacturers looking to automate recurring jobs while remaining agile for new ones.
Entry-Level Automation: Great for fabricators who are just beginning to adopt automated bending systems.
TruBend Cell 5000 Lean Edition Technical Data
Machine
Press Force
93.5 tons
Bending Length
87 in
Width Between Columns
68.9 in
Usable Open Height
24.2 in
Throat Depth
16.5 in
Speeds
Rapid Downward Movement
7.87 in/s
Maximum Y Press Operation
0.98 in/s
BendMaster
Maximum Part Size
78 in x 40 in
Profiles
up to 78 in
Maximum Part Weight
88 lb
Maximum Carry Capacity
132 lb
Minimum Sheet Thickness
0.02 in
Path Length
0.24 in
Maximum Sheet Stack
27.5 in
Maximum Stack Height for Finsihed Parts
40 in
Dimensions & Weights
BendMaster Weight
1,312 lb
Weight of Basic Machine
17,196 lb
Machine Dimensions (L x W x H)
118.90 in x 70.87 in x 111.61 in
Work In Tandem With
Tooling
The TruBend Cell 5000 Lean Edition supports a variety of TRUMPF tooling options:
Standard Bending Tools: High-quality tools for a broad range of daily production tasks.
Lightweight Tools: Designed to reduce strain on automation and operators, ideal for small part processing.
Special Tools: Custom-built for unique jobs, helping fabricators confidently tackle difficult geometries.
Software Integration
The Lean Edition works with TecZone Bend, TRUMPF’s intuitive programming software. It allows for quick part programming, automatic bend sequence calculation, and seamless machine communication for faster setup and increased productivity.
Get a Quote for the TRUMPF TruBend Cell 5000 Lean Edition
Want to start your automation journey without overhauling your entire production? The TruBend Cell 5000 Lean Edition is the perfect place to begin. Contact Maintecx today to learn more.
